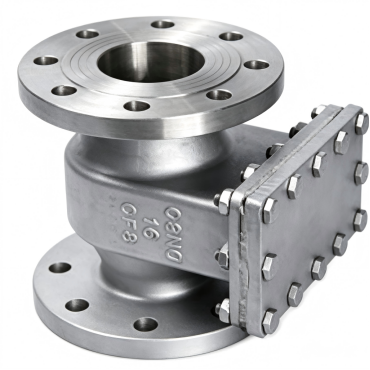

1. Drawer-type pull-out structure: The flame arrestor element is inserted like a drawer into the housing and can be pulled out along guides without disconnecting pipeline flanges, making maintenance simple and fast.
2. Corrugated plate flame arresting element: Alternately wound stainless steel corrugated and flat strips form a uniform, dense matrix of narrow passages, providing efficient and reliable flame quenching.
3. Bidirectional flame arresting: Effectively blocks flame propagation from either the tank side or the atmosphere side, suitable for two-way protection on breather valve inlets/outlets and vent lines.
4. Large flow capacity, low resistance: High porosity of the corrugated channels ensures smooth gas flow with negligible additional pressure drop to normal tank breathing.
5. High temperature resistance and deformation resistance: All-stainless steel construction withstands instantaneous high-temperature flame impact without sintering or deformation, ensuring long service life.
6. Corrosion-resistant design: Housing and element available in 304, 316L stainless steel or carbon steel (with anti-corrosion lining) suitable for hydrocarbon, chemical media, and outdoor environments.
7. Flexible installation: Standard flange connections allow horizontal or vertical installation, directly matching breather valves and pipelines with strong adaptability.
8. Low maintenance cost: Periodic cleaning of carbon deposits or impurities by pulling out the element and reinserting it eliminates the need for complete valve replacement, minimizing maintenance workload.
