RSC normally closed water dispenser solenoid valve

RSC normally closed water dispenser solenoid valve

  • Model:RSC-1 / RSC-2 / RSC-2CB / RSC-2L / RSC-8 / RSC-9 / RSC-10 / RSC-12
  • Specification:DN2.5 ~ DN12
  • Temperature:0 ~ 100 ℃(介质及环境温度)
  • Medium:Water, Hot Water, Gas
  • Pressure:0 ~ 8 bar (0 ~ 0.8 MPa)
  • Connection method:NPT Thread, Push-in (Tubing) Connection
  • Driving method:Direct-acting
  • Material:PP (Polypropylene), POM (Polyoxymethylene)
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
RSC normally closed water dispenser solenoid valveOverview

The RSC series Normally Closed Solenoid Valve for water dispensers is a high-precision fluid control valve custom-designed for food-grade equipment, drinking water systems, and water purification projects. Covering nominal sizes from DN2.5 to DN12, this series features premium food-grade PP and POM bodies, delivering outstanding water corrosion resistance and non-toxic, hygienic performance. Optimized for zero differential pressure, the valve ensures instantaneous and sensitive response across a 0 to 8 bar range, supporting NPT threads and convenient push-in tubing connections to streamline assembly in space-constrained layouts such as water dispensers, purifiers, and coffee machines.

Product Image:RSC normally closed water dispenser solenoid valve

RSC normally closed water dispenser solenoid valveCharacteristic

Zero Pressure Start & Zero Leakage: Engineered with a direct-acting mechanism, the valve requires no minimum operating pressure differential and opens or seals tightly even at zero pressure, ensuring drip-free safety.

Food-Grade & Hygienic Materials: The body is carefully molded from eco-friendly PP and POM materials that fully comply with sanitary safety requirements, boasting superior thermal resistance for prolonged contact with drinking water and high-temperature liquids.

Compact Design & Versatile Configurations: Tailored for the tight interior enclosures of household appliances, it offers multiple structural styles (including straight-through, elbow types, and various tubing/thread unions) to accommodate versatile piping routings.

Low Power Consumption & Extended Lifespan: The solenoid coil undergoes precision optimization to achieve lower power consumption and minimal heat generation. Internal moving cores and springs are crafted from high-grade anti-corrosive materials to guarantee an exceptionally long operational lifespan under high-frequency cycling.


RSC normally closed water dispenser solenoid valvestructure principle

Structure Diagram:RSC normally closed water dispenser solenoid valve

RSC normally closed water dispenser solenoid valvetechnology parameter

Specification Sheet

Product ModelInterface TypeFlow Orifice (mm)Cv ValueWorking Pressure AC220V (bar)Working Pressure DC24V (bar)Coil Power AC220VCoil Power DC24VBody Material
RSC-1NPT1/8 "2.50.20 ~ 80 ~ 87VA5.5WPP
RSC-2NPT1/4 "2.50.20 ~ 80 ~ 87VA5.5WPP
RSC-2CBPush-in / Intubation2.50.20 ~ 80 ~ 87VA5.5WPOM
RSC-2LPush-in / Intubation2.50.20 ~ 80 ~ 87VA5.5WPOM
RSC-8Push-in / Intubation81.3600mm water column pressure600mm water column pressure7VA5.5WPP
RSC-9Push-in / Intubation91.5600mm water column pressure600mm water column pressure7VA5.5WPP
RSC-10Push-in / Intubation102.3600mm water column pressure600mm water column pressure7VA5.5WPP
RSC-12Push-in / Intubation123600mm water column pressure600mm water column pressure7VA5.5WPP


RSC normally closed water dispenser solenoid valvestandard size

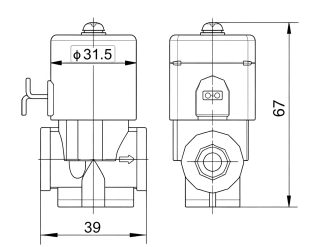

Outline Diagram:RSC normally closed water dispenser solenoid valve

Outline Dimension Table   (Unit:mm)

Product ModelInterface TypeFlow Orifice (mm)Cv ValueWeight (kg)
RSC-1NPT1/8 "2.50.20.13
RSC-2NPT1/4 "2.50.20.13
RSC-2CBPush-in / Intubation2.50.20.13
RSC-2LPush-in / Intubation2.50.20.13
RSC-8Push-in / Intubation81.30.14
RSC-9Push-in / Intubation91.50.13
RSC-10Push-in / Intubation102.30.14
RSC-12Push-in / Intubation1230.13


Due to the rapid R&D iteration speed of valve products from China kaiweixi Valve Group Co., Ltd., the above technical parameters and specification documents, including product overview, features, parts materials, outline dimension charts, CAD drawings, and product instruction manuals, are for your reference only. For actual applications, please contact our valve sales engineers to obtain the support you need for free. Thank you!
