The 0927 Series 2/2-Way Pilot Operated Normally Closed Diaphragm Solenoid Valve is a high-performance control valve specifically engineered for precision regulation in industrial automated fluid systems and modular pipeline skids. Spanning a nominal size range from DN10 to DN25, this series features a robust yet space-efficient mechanical design. It fully integrates and supports high-precision G and NPT connection standards, making it exceptionally seamless to adapt and replace within diverse international piping networks. Operating as a normally closed valve, it retains an airtight, reliable close-off state whenever power is disconnected, perfectly matching rigorous industrial safety protocols.

The internal mechanism utilizes an advanced, reinforced composite flexible diaphragm paired with a fluid-dynamically optimized pilot layout, ensuring remarkable responsiveness, minimal pressure drop, and exceptional opening/closing sensitivity across a wide operational pressure range of 0 to 8 bar. Forged from high-grade Brass, the valve body delivers superb burst strength and machining accuracy, welcoming universal compatibility with industrial water, standard liquids, ambient gases, and light oils. Engineered with a keen emphasis on anti-cavitation and debris resistance, this diaphragm series sustains exceptionally consistent control characteristics over prolonged high-frequency duty cycles, serving as a highly cost-effective and dependable component for modern fluid automation pipelines.

Product Image:0927 2/2-Way Pilot Operated Normally Closed Diaphragm Solenoid Valve

Multi-Standard Threads & Compact Layout:

Purpose-built for pipelines within the DN10 to DN25 medium-and-small spectrum, showcasing a highly optimized geometry that drastically reduces the installation footprint. Full alignment with international G and American NPT thread specs facilitates fast on-site assembly and instant domestic/global hardware interchangeability.

High-Reliability Normally Closed Safety Engineering:

Adopting standard normally closed electrical configurations, the valve delivers instantaneous opening strokes when energized, and promptly snaps back to a zero-leakage shut-off state via its heavy-duty return spring and media backpressure once power cuts out, effectively eliminating fluid loss and safety hazards during unexpected outages.

Pilot-Operated Efficient Diaphragm Mechanism:

The internal flow networks and large-flow pilot paths are meticulously balanced via advanced geometry, delivering clean and decisive strokes under a broad 0 to 8 bar working scope. Relying on differential pilot pressure, the valve demonstrates superior fluid-handling and close-off authority under larger flows and pressurized operations.

Premium Brass Body & Comprehensive Media Capability:

The valve bodies are precisely machined from superior high-density Brass, offering exceptional mechanical impact toughness and robust surface oxidation resistance. This structural stability provides highly dependable handling of industrial water, air/gases, and light oils, exhibiting comprehensive industrial adaptability.

Optimized Wide-Temperature Operational Stability:

Engineered to withstand prolonged operational exposure within a fluid and ambient temperature range of -5 to 80 ℃. The core sealing diaphragm and flexible internals benefit from advanced compound formulas, avoiding hardening, permanent set, or fatigue cracking under temperature swings to preserve long-term absolute sealing.

Structure Diagram:0927 2/2-Way Pilot Operated Normally Closed Diaphragm Solenoid Valve

Specification Sheet

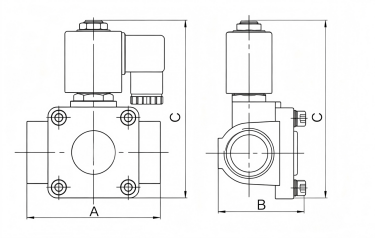

Outline Diagram:0927 2/2-Way Pilot Operated Normally Closed Diaphragm Solenoid Valve

Outline Dimension Table   （Unit:mm）

Due to the rapid R&D iteration speed of valve products from China kaiweixi Valve Group Co., Ltd., the above technical parameters and specification documents, including product overview, features, parts materials, outline dimension charts, CAD drawings, and product instruction manuals, are for your reference only. For actual applications, please contact our valve sales engineers to obtain the support you need for free. Thank you!
