Product Introduction

The H142X hydraulic water level control valve product is suitable for automatic water supply systems of various water tanks, water pools, and water towers in industrial and mining enterprises and civil buildings, and can be used as a circulating water control valve for atmospheric boilers.

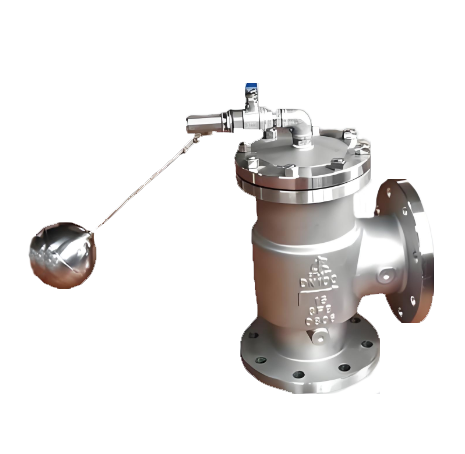

H142X Hydraulic Water Level Control Valve Product Diagram

Performance Characteristics

1. Using hydraulic principles for control, the structure is novel and reasonable.

            2. The work is stable and reliable, and within the specified pressure range, it can ensure no water hammer impact.

3. Lightweight, compact in size, and easy to install and maintain.

Working Principle

When the water level in the pool or water tower drops, the float valve opens, causing the upper chamber of the piston to lose pressure. The pressurized water in the inlet pipe lifts the piston inside the valve, and the valve disc opens, opening the valve for water supply. When the water level rises to the control line, the float valve closes, and the pressurized water in the upper chamber of the piston pushes the piston down to close the sealing surface, stopping the water supply to the valve.

Structure diagram of H142X hydraulic water level control valve

Parts Material List

Technical Parameters

Nominal pressure: 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa（150Lb）

Medium pressure: 0.15-1.0Mpa

Medium temperature: 0-80 ℃

Applicable medium: Clear water

H142X Hydraulic Water Level Control Valve Outline Dimensional Drawing

H142X Hydraulic Water Level Control Valve Dimensions Table

Due to the rapid R&D iteration speed of valve products from China Kaivex Valve Group Co., Ltd., the above technical parameters and specification documents, including product overview, features, parts materials, outline dimension charts, CAD drawings, and product instruction manuals, are for your reference only. For actual applications, please contact our valve sales engineers to obtain the support you need for free. Thank you!
