Application

The J145X Electric Remote Control Valve produced by our company is mainly used to be installed in the pipelines of high-rise building water supply systems and other water supply systems. It opens or closes the valve according to electrical signals or manual operation, and can replace large-scale electric devices used to open and close gate valves or butterfly valves.

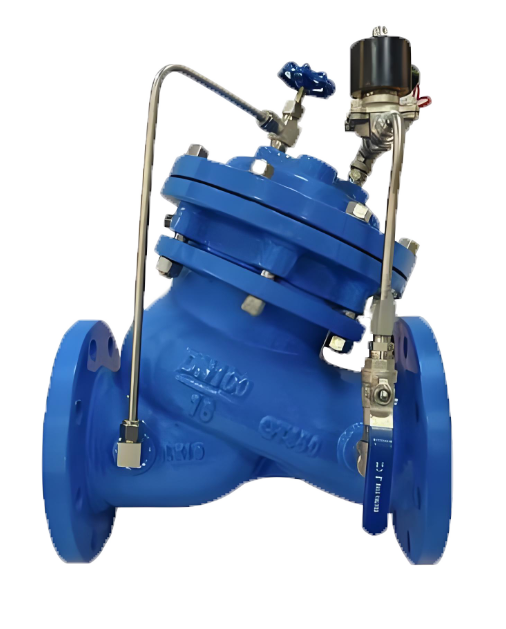

J145X Electric Remote Control Valve Product Diagram

Features

1.Accurate and rapid control response;

2.Adjustable closing speed, enabling the valve to close smoothly without pressure fluctuations;

3.Equipped with a three-way solenoid valve for simple maintenance.

Working Principle

Through pressure transmission via the hydraulic conduit, the main valve slide plate (valve disc) mimics the action of the pilot valve. When the electrical signal is an opening command, the solenoid valve opens to release the pressure water above the diaphragm, and the main valve opens. When the electrical signal is a closing command, the solenoid pilot valve closes, and the upstream pressure acts on the top of the diaphragm to close the main valve.

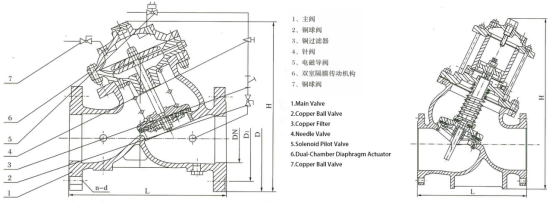

Structure diagram of J145X electric remote control valve

Parts Material List

Main Technical Parameters

J145X Electric Remote Control Valve Outline Dimensional Drawing

J145X Electric Remote Control Valve Dimensions Table

Main Overall Dimensions

Due to the rapid R&D iteration speed of valve products from China Kaivex Valve Group Co., Ltd., the above technical parameters and specification documents, including product overview, features, parts materials, outline dimension charts, CAD drawings, and product instruction manuals, are for your reference only. For actual applications, please contact our valve sales engineers to obtain the support you need for free. Thank you!
